X-Stage Marx Generator DIY Kit's Power Supply Wiring

Posted by parson deng on

X-Stage Marx Generator DIY Kit's Power Supply Wiring

The kit can be purchased at:

https://yanlania.com/products/marx-generator-6-stage

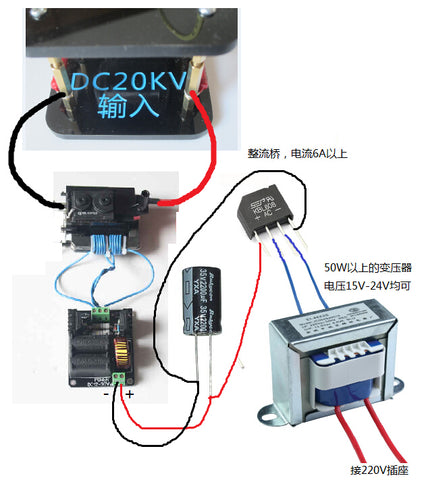

An wiring example:

Start with 50W+ Transformer, using capacitor/bridge rectifier to DC output, and then to ZVS, to fly back transformer(TV ignitor), to DC 20KV input.



The 50W+ transformer, rectifier, ZVS board+ TV ignitor should be prepared separatedly from the listed kit.
