FSR 8x8 Matrix Force Distribution Sensor
Package Included
- FSR Force Sensor MatrixArray 8x8 x1pcs
Specification:
Sensing Range/single point | |

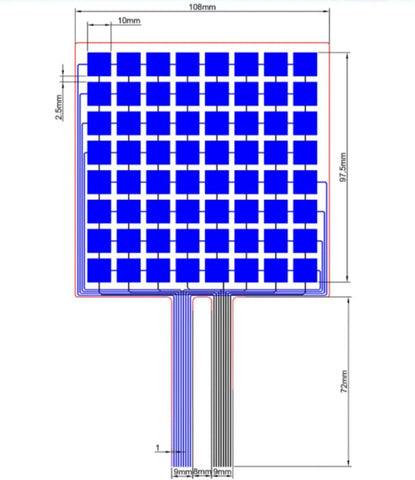

Sensing Area-mm | 97.5*97.5 |
FPC Pitch-mm | 1 |
Working Voltage | 3.3-5V |
Response Time | <20ms |
Off resistance | >1M Ohm |
Hysteresis | <6% |
Force repeatable | (+/-8%) |
Working temperature: | (-30℃~60℃) |
Features and Application

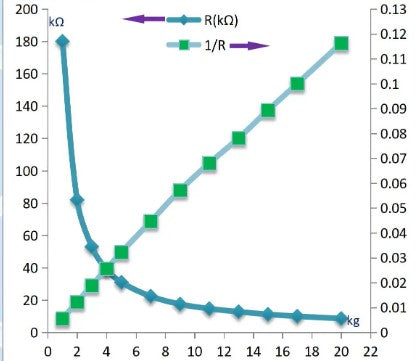

- Flexible pressure sensor (also called FSR) is an ultra-thin (thickness usually around 0.3mm), high-sensitivity resistive pressure sensor. When pressure is applied to the sensing area, the resistance of the sensor changes..
- It will be suitable for the estimation of force pressed.
Note:
the measurement accuracy of the thin film pressure sensor is greatly affected by the trigger area, and the default setting is the data obtained from the full contact of the sensor area. In fact, if only part of the data is pressed, there will be deviation. It is not suitable for accurate measurement. In addition, the film pressure sensor is not suitable for accurate measurement, the error may have different errors according to different ways of use, only suitable for rough measurement of pressure or weight.
After connected to computer,open Resistance-Force software and caliberated.
Datalogger can be saved in excel file also.
