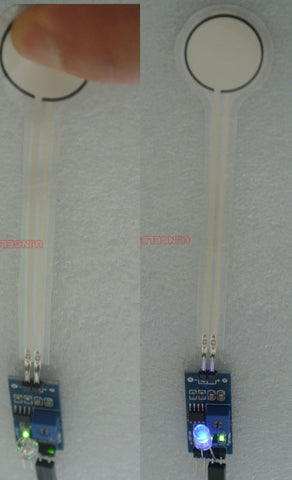

FSR Force Sensor Single-Point Flexible Force Sensing FSR-Q Series
5pcs/Lot( part number upon selection)
| Sensing Area(diameter) | Part Number | Force Sensing Range |
| 10mm | FSR-Q10S | 50g to 2KG |
| 10mm | FSR-Q10M | 500g to 20KG |
| 10mm | FSR-Q10L | 5KG to 50KG |
| 15mm | FSR-Q15S | 50g to 2KG |
| 15mm | FSR-Q15M | 500g to 20KG |
| 15mm | FSR-Q15L | 5KG to 50KG |
| 20mm | FSR-Q20S | 50g to 2KG |
| 20mm | FSR-Q20M | 2.5KG to 20KG |
| 20mm | FSR-Q20L | 5KG to 50KG |
| 25mm | FSR-Q25L | 5KG to 50KG |
By Selecting matched R0(Or adjust by potentimeter)，F @ 1/R can be closed to linear.
Need Signal converter also, pls Go to:Signal Converter kit A0 D0 ADJ
