MSG50 VOC Gas Sensor TVOC 0-20.00mg/m³ - Digital Volatile Organic Compounds sensor module - UART TTL 5V
MSG50 OEM VOC Gas Sensor is a great OEM solution to your VOC detection needs. Arduino Compatible VOC Gas Sensor.Typically data example:
2C E4 00 0F 00 06 01 95 BB

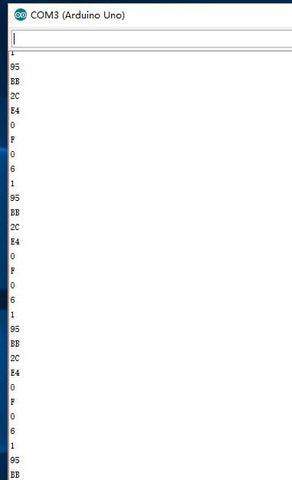

see example reading from arduino serial .
Parameters
|
Part Number |
MSG50 |
|||
|
Gas Detection |
The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc. |
|||
|
Specifiaction |
I/O |
XH2.54-4pin connector |
||
|
Output Data |
UART-TTL（5V ） |
|||
|
OPERATING VOLTAGE |
5.0±0.2VDC （no voltage reverse connection protection） |
|||
|
MEASUREMENT RANGE |
（ TVOC）：0-20.00mg/m³ （ CO2）：400-6000ppm （ HCHO）：0-10.00mg/m³ |
|||
|
parameter |
Working Current |
≤80mA |
RESPONSE TIME |
≤10S |
|
Pre-heating |
60S |
Recovery Time |
≤120S |
|
|
Enviornment |
Working Temp |
-10 --- 40℃ |
Storage Temp |
-20 --- 60℃ |
|
Working humidity |
≤95％RH |
Storage humidity |
≤60％RH |
|
|
physical |
Sensitivity |
0.1ppm H2 |
||
|
Dimension |
24×20×15mm（L×W×H） |
|||
|
Sensitivity Attenuator |
≤1%/year |
Life span |
5~10years |
|
