10pcs 20mH 3A Inductor Common Mode line filter 25mmx15mmx13mm

Regular price $29.99

Shipping calculated at checkout.

10pcs 20mH 3A Inductor Common Mode line filter 25mmx15mmx13mm

10pcs/Lot

Features:

Small Temperature Rising

Full line from small to large current application

Application

Inverter, switch power supply etc

Noise filter for swith regulator

EMI Choke

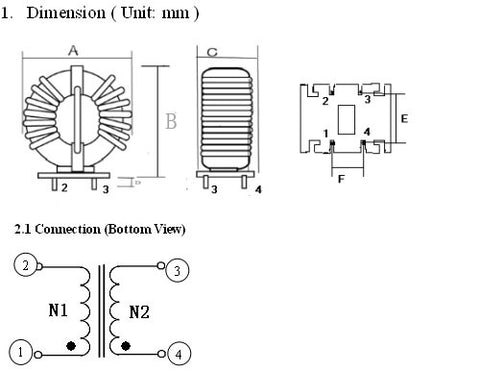

UNIT:mm

A

B

C

D

E

F

32max

32max

22max



16+/- 1

18+/- 1



Test Item: Inductance, DCR, Dielectric Strength Upon Specific Inductance Required



  1. Standard Part Number

Part Number

Inductance(mH)

Current(A)

CM251513-0.5mH

0.5

14

CM251513-1mH

1

16

CM251513-2mH

2

6

CM251513-3mH

3

9

CM251513-4mH

4

7.5

CM251513-5mH

5

6

CM251513-8mH

8

5

CM251513-10mH

10

5



Note: The inductance and rated current can be customized upon request, the pin layout has two option:

16x18mm OR 12x18mm for option. The above is for ring size(net): 25x15x13mm.



Below is a list of other Magnet Ring Size for option:

9*5*3mm

10*6*5mm

14*8*7mm

16*9*7mm

16*12*8mm

18*10*10mm

22*14*8mm

25*15*10mm

31*19*13

38*19*13

40*24*20
