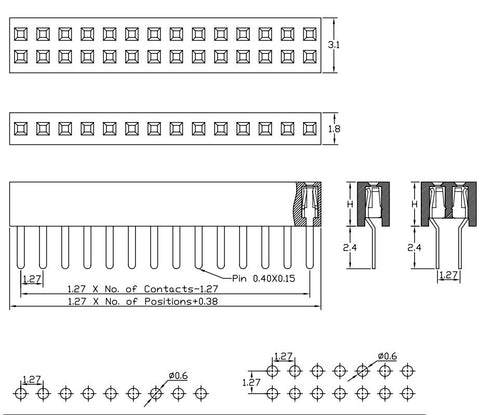

100pcs THT 2x20Pin 1.27mm Female Header Dual ROW SIP Socket B-T-B Connector YLA-0543C
100pcs/Lot
Part Number:YLA-0543C-2-20-S-S0
Order Information
YLA-0543C-2-20-S-S0
- 0510:Housing Height:4.3mm/C:Housing Material PA6T
- 1-Single Row 2-Double ROW
- XX-Total pin number (No.of 2~120pins)
-
S-Straight Pin R-Right Angle Pin T-SMT Pin
- S0:Gold Flash/Tin
Specifications/ELECTRICAL
- CURRENT RATING: 1.0 Amp.
- INSULATION RESISTANCE: 500mΩ Min.
- DIELECTRIC WITHSTANDING: 300VAC.
- CONTACT RESISTANCE: 20mΩ Max.
- OPERATING TEMPERATURE: -40°C TO +105°C.
PLASTIC WITHSTAND TEMP/ MAX PROCESSING TEMP:
180°C FOR 30-60 SEC; (200°C FOR 5-10 SEC.) – PBT
230°C FOR 30-60 SEC; (260°C FOR 5-10 SEC.) – PA6T
