100pcs THT 2x50Pin 1.27mm Male Pin Header Dual ROW B-T-B Connector YLA-0510C

Regular price $59.99

Shipping calculated at checkout.

100pcs THT 2x50Pin 1.27mm Male Pin Header Dual ROW B-T-B Connector YLA-0510C

100pcs/Lot

Part Number:YLA-0510C-2-50-S-S0-2/4/7-S1

Order Information

YLA-0510C-2-50-S-S0-2/4/7-S1

  • 0510:Housing Height:1.0mm/C:Housing Material PA6T
  • 1-Single Row   2-Double ROW
  • XX-Total pin number  (No.of 2~120pins)
  • S-Straight Pin  R-Right Angle Pin   T-SMT Pin
  • S0:Gold Flash/Tin

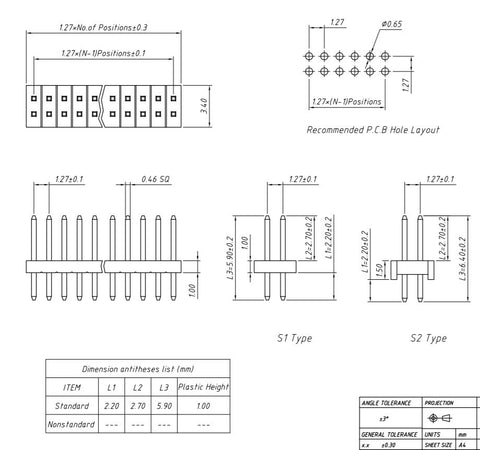

  • Size: L1/L2/L3:2/4/7mm
  • S1:S1 Housing Type

Specifications/ELECTRICAL

  • CURRENT RATING: 1.0 Amp.
  • INSULATION RESISTANCE: 500mΩ Min.
  • DIELECTRIC WITHSTANDING: 300VAC.
  • CONTACT RESISTANCE: 20mΩ Max.
  • OPERATING TEMPERATURE: -40°C TO +105°C.

 PLASTIC WITHSTAND TEMP/ MAX PROCESSING TEMP:

180°C FOR 30-60 SEC; (200°C FOR 5-10 SEC.) – PBT

230°C FOR 30-60 SEC; (260°C FOR 5-10 SEC.) – PA6T
