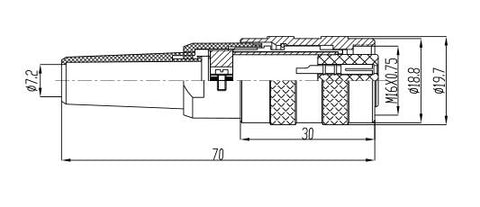

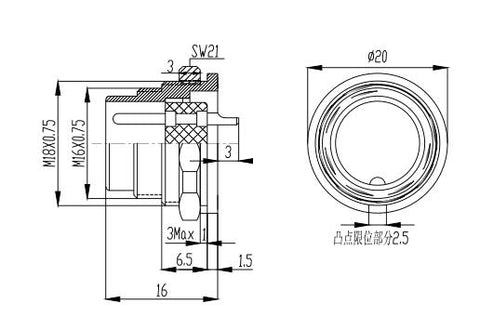

IP65 M16 Circular connector straight female plug + panel back mount male socket x1pairs
Specification:
Number of contacts:7pin
| Coupling | Thread Coupling | Termination | Solder |
| Shell material | Copper Alloy（Chromplate） | ||
| Zinc Alloy（Chromplate） | Mating cycle | 500 | |
| Nylon | |||
| Insulation | Nylon | Temp range | -25℃ ~ +85℃ |
| Contact Material | Copper（Silver plated/ gold） | Cable Dia | ≤ φ6.0mm ~ ≤ φ8.5mm |
Technical parameter
| Number of contact | 2 | 3 | 4 | 5 | 5A | 6 | 7/7A | 8 | 12 | 14 | 16 | 19 |
| Rated current / Voltaghe | 7A-200V | 7A-200V | 7A-200V | 6A-200V | 5A-60V | 5A-200V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V |
| Operating limit Voltage（AC.V）minutes | 250 | 250 | 250 | 250 | 125 | 250 | 125 | 125 | 125 | 125 | 125 | 125 |
| Witherstanding voltage（AC.V）minutes | 1500 | 1500 | 1500 | 1500 | 500 | 1500 | 800 | 500 | 500 | 500 | 500 | 500 |
| Insulation resistance（MΩ）DC500V | 1500 | 1500 | 1500 | 1500 | 1000 | 1500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Contact Resistance（mΩ）DC1A | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 | 10 |
| Solder cup mouth aperture φ（mm） | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 0.8 | 0.8 |
| Solder inter diameter φ（mm） | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 |
