Pre-Wired Pushbutton switch 12mm hole IP67 waterproof with Led Lighting Self-Lock x10pcs

Regular price $49.99

Shipping calculated at checkout.

Pre-Wired Pushbutton switch 12mm hole IP67 waterproof  with Led Lighting Self-Lock x10pcs

10pcs/lot

Model Nbr

A4127-8118(TOOWEI)


Product Brief

The A400 series of waterproof button switches have a waterproof rating of IP67, and the installation dimensions are 12mm, 16mm, and

19mm. Button colors can be customized according to customer requirements. This series can be self-locking and non-self-locking (reset)

with and without lights. The material can be divided into stainless steel and plast

Specification

  • Rating value5A 250VAC 8A 125VAC
  • Mechanical life: 200,000 operations one-shot circuit

200,000 operations continuous circuit

  • Electrical life:≥100,000 operations
  • Operating force:<6N
  • Contact resistance:≥100MΩ
  • Ambient temperature-25~+80
  • Contact resistance:<50mΩ
  • Withstand Voltage1000V 50/60Hz For one minute

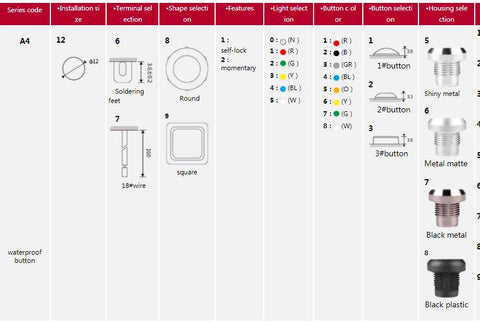

Part Number Builder Link
